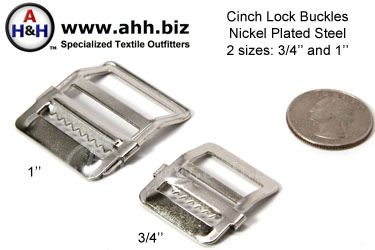

Nickel Plated Steel, for webbing sizes: 3/4 inch (19mm), 1 inch (25mm)

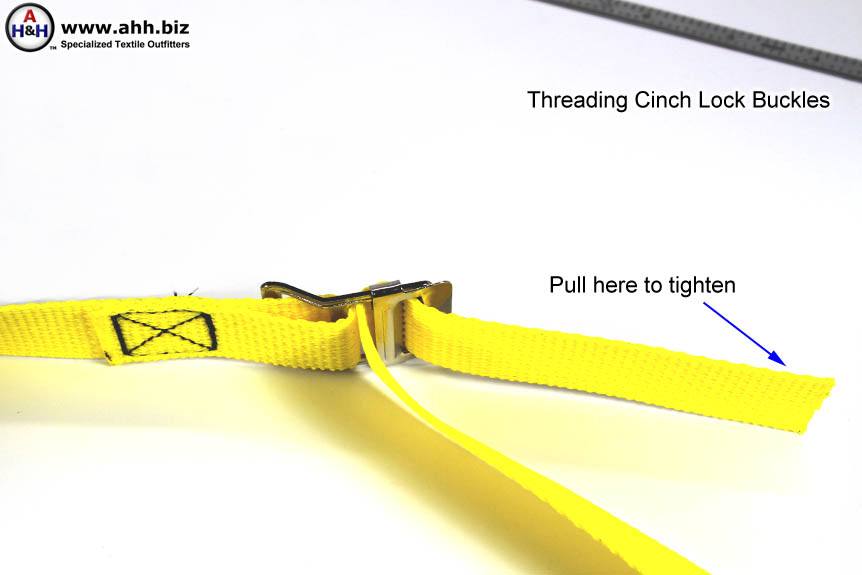

Constructed of heavy gauge stamped, formed sheet steel with Silver colored, Nickel Plating for corrosion resistance Cinch locks are similar in function to ladder locks but are more resistant to slippage when subjected to motion. The toothed sliding bar on these cinch locks is engaged when the webbing is tensioned. Increasing the tension on the webbing, increases the pressure on the sliding bar making it lock the webbing even tighter. Pulling on the other end of the webbing disengages the sliding bar and allows the webbing to be pulled freely in the opposite direction. Good for applications where straps must be removed or re-adjusted often. Not intended for life safety devices.
Product Data:
Overall length:
Size, Old Model Number, Length
3/4" (LCN075)...1_3/16
1" (LCN100)...1_3/8
Width
3/4" (LCN075)...1_1/8
1" (LCN100)...1_3/8
Overall Thickness
3/4" (LCN075)...1/8
1" (LCN100)...3/16
Search Terms / Also Called: webbing buckle, cinch buckle, cinch lock buckle, sliding bar webbing cinch
| 3/4 inch | H41A-STNI-CNLC-0750-WT 0.3 lbs. (0.14 kg) |
| 1 inch | H41A-STNI-CNLC-1000-WT 0.4 lbs. (0.18 kg) |
| 1- 9 Per 10 Pack | 0% |
| 10- 49 Per 10 Pack | 40% |
| 50- 99 Per 10 Pack | 45% |
| 100- or more Per 10 Pack | 50% |
