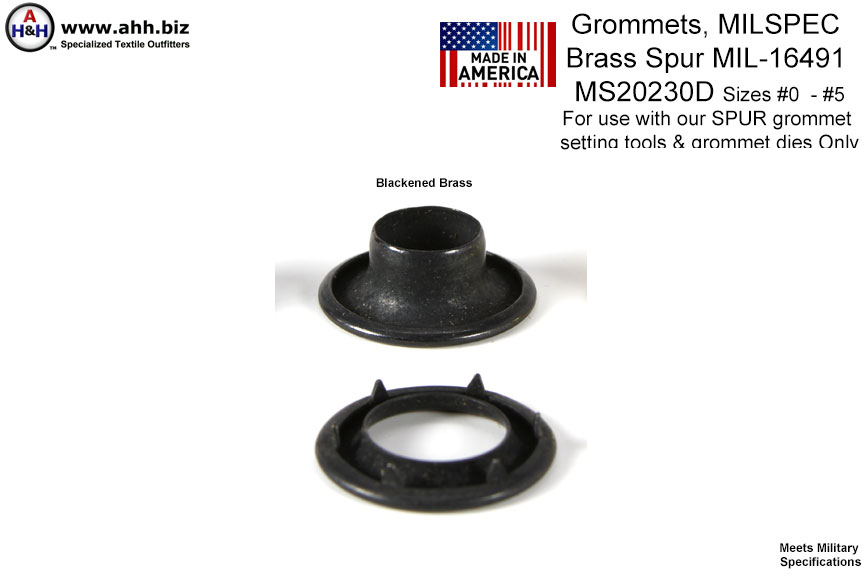

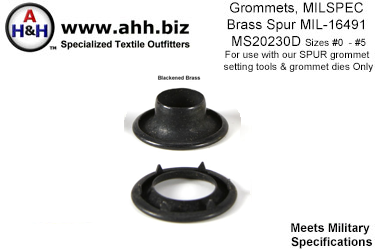

Black Spur Grommets Mil-Spec MIL-G-16491 MS20230D

Blackened Brass Military Specification (Mil-Spec) Spur grommets, have teeth along the rim
that grip material better than plain rim grommets

Product Description
Info & Discounts
Specifications

Military Specification Grommets - Made in USA

Approved, and in many cases, specified; Spur Grommets and Washers meet MIL-G-16491 MS20230D (ASG), are manufactured in the United States of America and meet with the latest Military and Commercial Specifications.

Made from solid brass and coated or plated. Spur grommets have spurs, sharp tooth like projections on the washers that penetrate into the fabric or leather they are installed into. The specially rolled rim on the grommet body then sheathes the spurs and locks them in place.

Spur grommets have much more holding power than standard, plain rim grommets. Use only designated Spur Grommet setting tools to set these Spur Grommets, as the profile and shape of these grommet dies vary from plain grommet setting dies, to accommodate and properly bend the spurs into place during installation. Size 0 through Size 5 are sold by the gross (enough grommet parts for 144 grommets).

Note: We also carry the much less expensive Plain Grommets & Plain Grommet Setting Tools

Note: Spur Grommets require designated Spur Grommet Setting tools or Spur Grommet Die & Cutter sets, sold separately, and can not be installed properly using standard, plain rim grommet setting tools & dies.

Grommet Size (Numeric) & Hole Diameter	Quantity in Box (sets of grommets & washers)
00 (3/16 inch Hole) (4.7mm hole)	144
0 (1/4 inch Hole) (6.3mm hole)	144
1 (9/32 inch Hole) (6.3mm hole)	144
2 (3/8 inch Hole) (7.1mm hole)	144
3 (7/16 inch Hole) (11.1mm hole)	144
4 (1/2 inch Hole) (12.7mm hole)	144
5 (5/8 inch Hole) (15.8mm hole)	144
6 (13/16 inch Hole) (20.6mm hole)	12
7 (29/32 inch Hole) (23.0mm hole)	12
8 (1 3/32 inch Hole) (27.7mm hole)	12
10 (1 1/2 inch Hole) (38.1mm hole)	20

Note: Due to the dramatic and volatile increase in the price of copper, (used to make brass) the price of this item has been increased.

Search Terms / Also Called: spur grommets, grommet, mil-g-16491, ms20230d

Product Information and Discounts

Product Name:
Spur Grommets Blackened Brass Mil-Spec MIL-G-16491 MS20230D

Model No. / Shipping Weight

(Size 0) 1/4″ hole	H71M-BRBK-GROM-0144-00 0.90 lbs. (0.41 kg)
(Size 1) 9/32″ hole	H71M-BRBK-GROM-0144-01 1.20 lbs. (0.54 kg)
(Size 2) 3/8″ hole	H71M-BRBK-GROM-0144-02 2.00 lbs. (0.9 kg)
(Size 3) 7/16″ hole	H71M-BRBK-GROM-0144-03 2.20 lbs. (0.99 kg)
(Size 4) 1/2″ hole	H71M-BRBK-GROM-0144-04 3.20 lbs. (1.44 kg)
(Size 5) 5/8″ hole	H71M-BRBK-GROM-0144-05 4.00 lbs. (1.8 kg)
