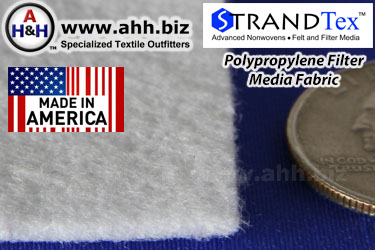

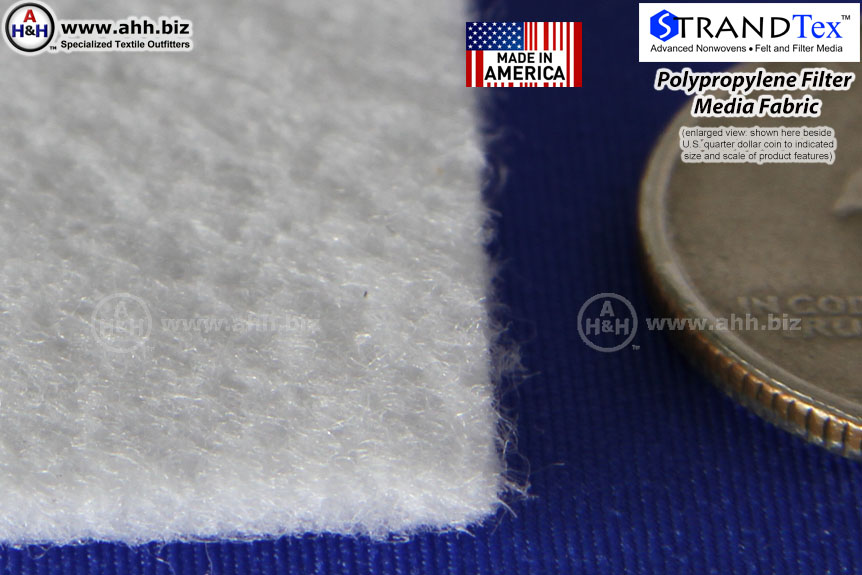

Polypropylene Filter media fabric


For Liquid filtration applications

Polypropylene Filter media fabric

Buy Small Samples
   2 inch x 2 inch (50mm²)

Polypropylene Filter media fabric

Price: $25.00 Per Sample,
Choose Sample Color(s):
Click on color swatches below to choose.
Choose as many different color samples as you like.



Buy Large Samples
   12 inch x 12 inch (30cm²)

Polypropylene Filter media fabric

Price: $75.00 Per Sample,
Choose Sample Color(s):
Click on color swatches below to choose.
Choose as many different color samples as you like.



Buy Color Swatch Book
Polypropylene Filter media fabric

Price:  $10.75


Micron level filtration fabric for liquids


Polypropylene filter fabric stocked in 10 and 25 Micron sizes, other sizes are available upon request. This material is 100% Polypropylene, needle punched.

Specifications & Physical Properties:

10 Micron:
Width: 1829mm (72 inches)
Nominal thickness: 2.03mm (0.080 inch)
Weight: 339 g/sq m (10.0 oz/sq yd)
Temperature tolerance: Maximum 121℃ (250℉), Constant: 93℃ (200℉)
Air Permeability ASTM D737: 60-120 Ft3/Ft2/min

25 Micron:
Width: 1829mm (72 inches)
Nominal thickness: 1.83mm (0.072 inch)
Weight: 356 g/sq m (10.5 oz/sq yd)
Temperature tolerance: Maximum 121℃ (250℉), Constant: 93℃ (200℉)
Air Permeability ASTM D737: 110-180 Ft3/Ft2/min

Note: Air Permeability is primary characteristic of these materials - Weight & Thickness are secondary characteristics and may be adjusted.

This product is sold in the following measures:

Sold by Linear Yard
Cut to order in One Yard increments - one continuous piece, ′X′ yard(s) long.
(′X′ = the quantity of yards you wish to purchase)
This material comes on rolls 72" (1829mm) in width.
One Yard = 72" (1829mm) wide X 36 inches (914mm) long (Approximately)
No refunds after yardage order is cut.

Sold as samples of these dimensions:

SMALL sample size 2″ X 2″ (50mm X 50mm)
LARGE sample size 12″ X 12″ (300mm X 300mm)
All samples have printed label cards (written in English) stapled to them identifying the material.



Search Terms / Also Called: filter fabric, polypro filter, filtration fabric, liquid filter



Product Information and Discounts


Product Name:
Polypropylene Filter media fabric

Roll Size:
100 Yards
( 90 m)


Base Shipping Weight:
2.10 lbs. / Yard
(0.95 kg / 90 cm)

Color and Model Number:
10-micronFB5A-PPNO-FELT-MC10-WT
25-micronFB5A-PPNO-FELT-MC25-WT
Fabric and Webbing Model Numbers were updated January, 2016


Quantity Discounts / Wholesale Pricing:
0- 0 Yard0
0- 0 Yard0
0- 0 Yard0
100- or more Yard10%


Product Specifications

  • No Minimum Order Quantity
  • Quantity Discounts are available
  • Products that are in stock in our warehouse can ship the same day.
